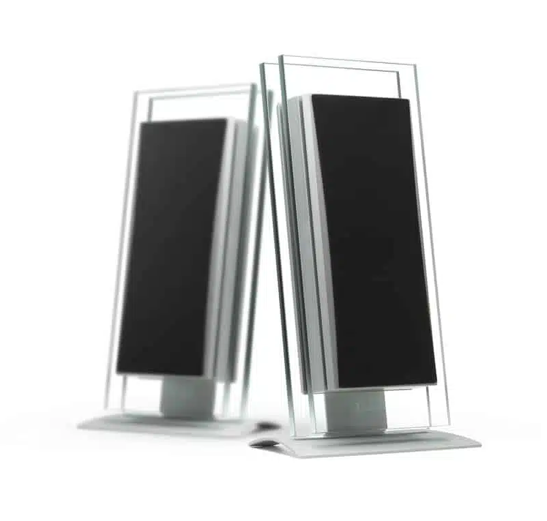

ON WALL & BOOKSHELF SPEAKER
ELORA EVO LR
There are some products that reveal themselves as the obvious choice in a matter of seconds,
Elora Evo is undeniably one of them. It is obvious at first glance that this is the absolute timeless «must have». Carved out of a solid aluminium piece like a sculpture, it generates an idea of force in a very elegant way. The ideal partner for our home cinema configurations.
HEATSTREAM, LDS & FWI
BREATHTAKING PERFORMANCE
The two mid-bass drivers are based on our innovating technologies Heatstream, LDS (Low diffraction surrounding) & FWI (Force without inductance). The specific filter design (2 & ½ way) provides great directivity control. Teamed up with our subwoofers, its performances encompass that of much larger speakers. By comparison to its size the Elora Evo very simply provides a supernatural sound reproduction.
HEATSTREAM, LDS & FWI
CONCEPTION
At the top of our « on wall » collection, this speaker uses solid aluminium parts and very thick glass panels. These parts are cut and machined following rigorous industrial processes to reach such a level of finish, simply unknown of in this market segment.
INTEGRATION
VISUAL & ACOUSTIC FUSION
Defined by a unique craftsmanship and embodied in a timeless design, the Elora Evo is the perfect blend of modernity and High-Fidelity sound.
On Wall speaker/satellite
Very slim: 8 cm/ 3.15‘’ thickness
Unequalled performances for this very compact speaker
High power handling*, patented “Heatstream” technology
Exceptional finish, 2 decorative safety glass panels 10 mm/ 0.39‘’ thick and solid carved aluminum parts
Interior design flexibility: optional magnetic grills (black or white)
TECHNICAL DETAILS
TYPE: 2 ½ way, 3 drivers, closed
RECOMMENDED AMPLIFIER*: 30-200 Watts
PEAK POWER: 400 Watts
IMPEDANCE (AVERAGE/MINI): 8 / 4 Ohms
EFFICIENCY (2.83V/1M): 90 dB
FREQUENCY RESPONSE (+/- 3dB): 120 Hz – 28 kHz
BASS / MIDRANGE DRIVER: 2 x 100 mm / 4‘’, Atohm LD100
TWEETER: 1 x 20 mm / 0,75‘’, Atohm SD20
DIMENSIONS (width x depth x height in mm) (approx. inches): 190 x 80 x 420 / 7.48‘’ x 3.15‘’ x 16.54‘’
WEIGHT Kg / approx. lbs: 6 kg / 13.2 lbs
* Power handling: the use of an amplifier beyond its limits provokes clipping of the signal which might lead to destruction of the speaker (burnt voice coils). These damages are not covered by warranty.
