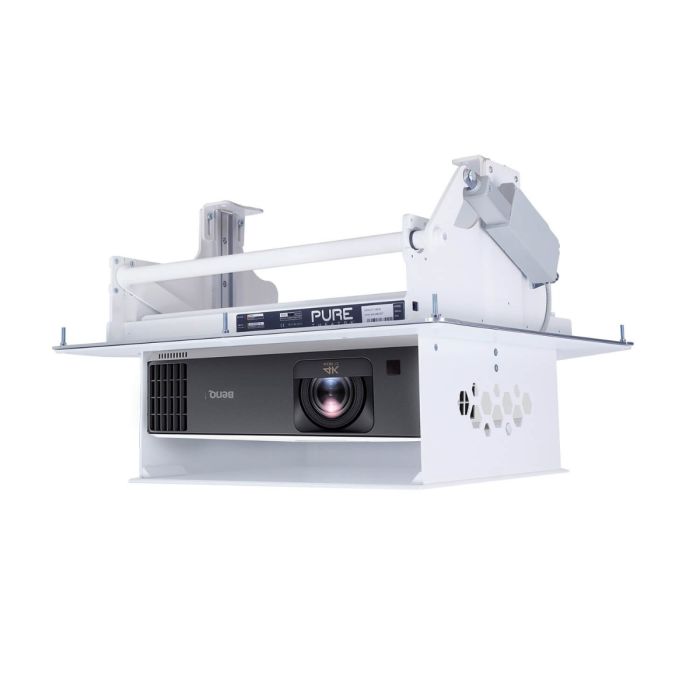

Pure Theatre CR35 Projector Lift
The Pure Theatre CR35 Projector Lift is a compact motorised ceiling lift designed to conceal a compatible home cinema projector completely within the ceiling when it is not in use.
At the touch of a button, the CR35 lowers the projector smoothly into its operating position. When viewing is finished, the projector retracts neatly back into the ceiling, maintaining a clean and uncluttered appearance.
The CR35 is particularly suited to smaller home cinema projectors, with a maximum projector capacity of 380 × 350 × 190 mm (W × D × H) and a maximum projector weight of 12 kg. Because of its compact dimensions, accurate positioning is important to ensure the projector lens aligns correctly with the screen and the required throw distance is achieved.
It is ideal for home cinemas, media rooms, living rooms and bespoke AV installations where a projector is required without having equipment permanently visible.
The CR35 can also form part of a fully automated cinema system, allowing the projector lift, electric projection screen, AV equipment and lighting to operate together as part of the cinema experience.
At Riverside HiFi, we can design the complete system around the CR35, including projector selection, throw-distance calculations, screen sizing, ceiling positioning, HDMI and network cabling, control, automation and professional installation.
Dimensions & Technical Specifications
- Overall lift dimensions: 540 × 490 × 210 mm (W × D × H)
- Maximum projector dimensions: 380 × 350 × 190 mm (W × D × H)
- Ceiling plate: 540 × 490 mm
- Plasterboard cut-out: 500 × 420 mm
- Minimum width above plasterboard: 590 mm
- Minimum ceiling void height: 210 mm
- Lift travel/drop: 155 mm
- Maximum projector weight: 12 kg
- Lift weight: 9 kg
- Raise/lower time: approximately 5 seconds
- Operating noise: approximately 30 dB
- Power supply: 100–240V AC, 50/60Hz
- Finish: White
- Warranty: 3-year return-to-base
- Manufacturer SKU: CR35-LFT
Pure Theatre states that the CR35 is designed to fit within standard 8-inch joists, requiring approximately 420 mm between the joists.
Professional installation is recommended. Projector dimensions and weight, ceiling structure, ventilation, service access, cable routing, throw distance and screen position should all be established before installation.
UK manufactured. Please contact Riverside HiFi to confirm projector compatibility & lead times.
