Description
IS8T
INVISIBLE SERIES
Invisible Speakers represent the peak of Sonance’s Designed to Disappear strategy. High frequencies are delivered using Sonance Motion Flex Technology, which features a Wave Flex Drive Unit with a bending wave diaphragm and a 1.75-inch (44mm) voice coil. Low frequencies are produced by an Air Flex Woofer that uses an air pulse diaphragm powered by an 8-inch (203mm) carbon fiber woofer.
KEY FEATURES
- 4 Ohms nominal impedance with select models for professional use (IS6T and IS8T feature Sonance Laminated Core Transformer for 4 Ohm/70v/00V tap selection)
- 180 degree sound
- Motion Flex Technology features acoustically isolated baffle, Air Flex Woofer and Wave Flex Drive Unit for superior detail and range
- Sonance CDX Crossover Design – Warmth and detail at all volumes
- Accepts up to 3mm topping compound
- Install into drywall, select plasters, wallpaper. leather, and wood veneer applications
- Sonance DISC Depth Identification Sensing Calibration System to measure and standardize finish and performance
SPECIFICATIONS
SKU
40197 (White)
Wave Flex Drive Unit
29in^2 (188cm^2) bending wave diaphragm, 1.75in (44mm) voice coil
Air Flex Woofer
191in^2 (1234cm^2) air pulse diaphragm, 8in (203mm) carbon fiber woofer
Frequency Response (+/- 3db)
40Hz – 30kHz
Power Handling (RMS)
160 watts RMS
Sensitivity
86dB (2.83V/1m)
Nominal Impedance (Ohms)
4 ohms
Dispersion
170 degree hemispherical up to 10kHz
Transformer Taps
70 V / 100 V: 60W, 30W and 15W 70 V: 7.5W

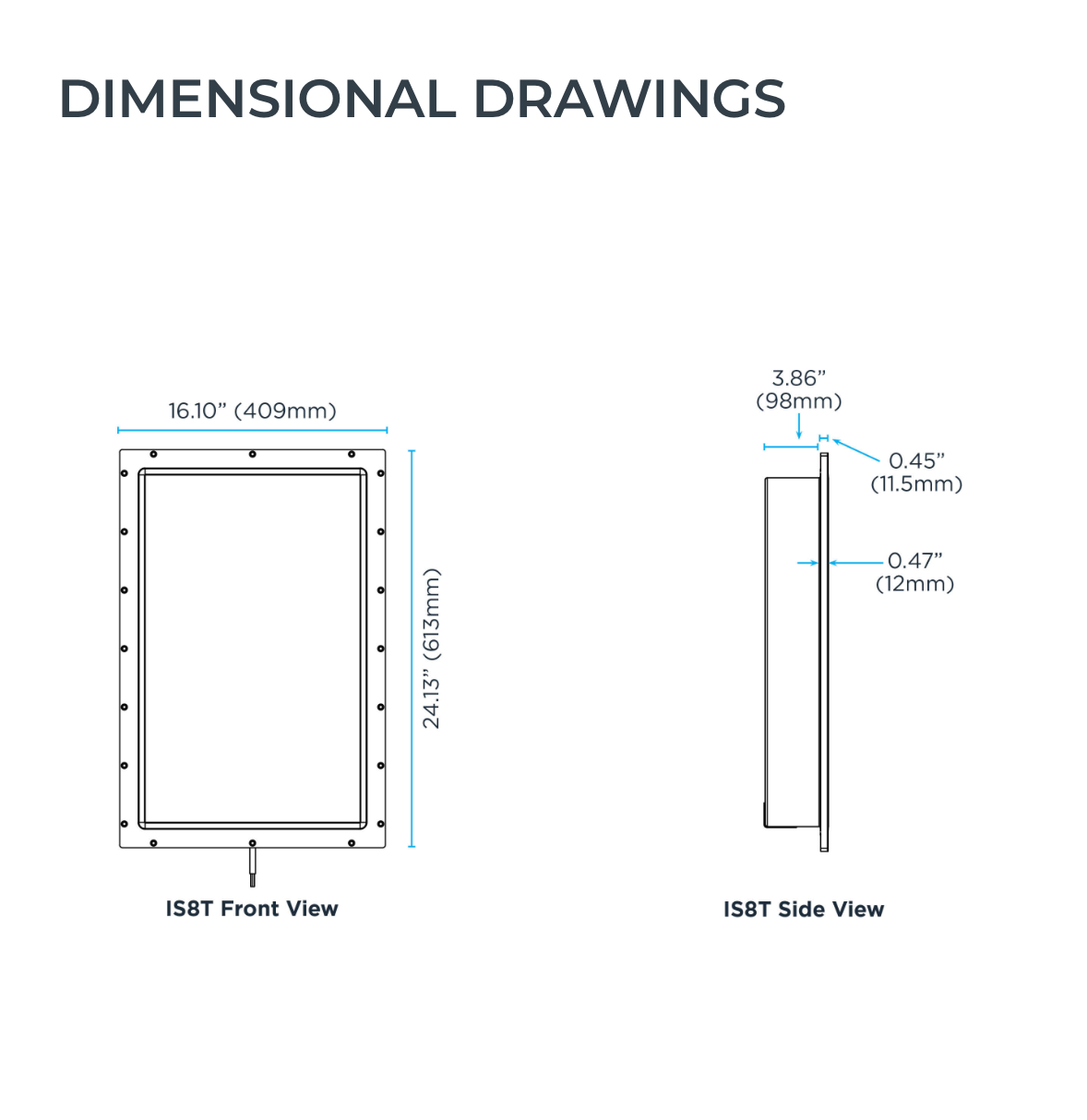

Dimensions (WxHxD)
16.1″ x 24.13″ x 3.86″ (408.94mm x 612.9mm x 98.04mm)
Mounting Depth
3.39″ (86.11mm)
Weight
25.24 lbs. (11.45kg)
Certifications
UL2043, UL1480
Attachment

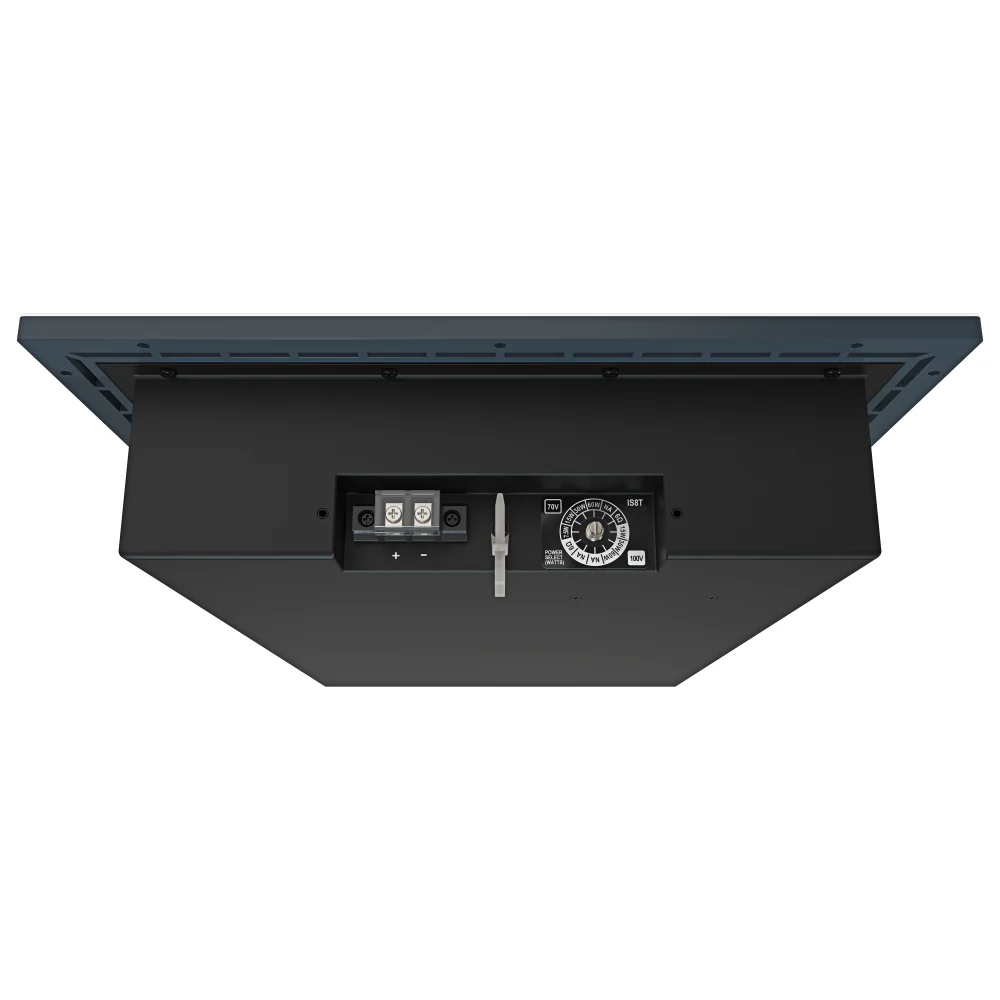

Screw Terminals with strain relief
Overload Protection
Two independent self-resetting poly switches
Architectural Specifications
The loudspeaker shall be of the two-way type comprising a single cabinet that is designed to inst…
Special order item.
All of the Sonance range is available from us so please feel free to get in touch about any models you require.
