Description

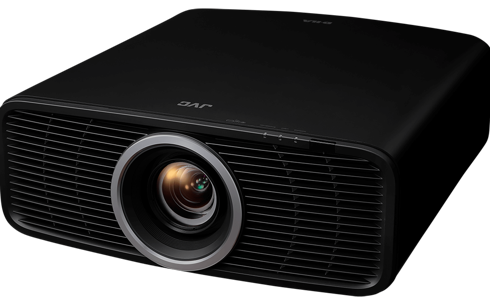

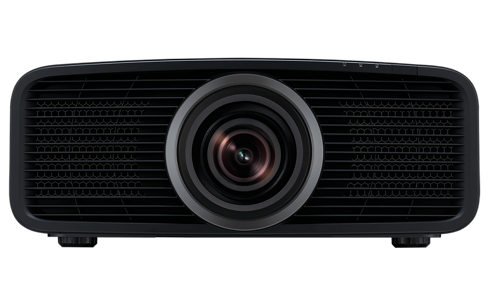

The JVC DLA-NZ700 is a premium native 4K laser home cinema projector, engineered to deliver outstanding picture quality, exceptional contrast and cinematic realism for dedicated home cinema installations.
Featuring JVC’s latest-generation 0.69-inch native 4K D-ILA imaging devices, the DLA-NZ700 produces beautifully detailed images with a resolution of 4096 × 2160 pixels, without relying on pixel-shifting technology.
Its advanced BLU-Escent laser light source delivers up to 2,300 lumens of brightness and an operational lifespan of approximately 20,000 hours, providing reliable performance and consistent picture quality.
With an exceptional 80,000:1 native contrast ratio, the DLA-NZ700 delivers deep blacks, outstanding shadow detail and impressive image depth, making it particularly suited to high-quality dedicated cinema rooms.
JVC’s renowned Frame Adapt HDR technology dynamically optimises HDR10 content, helping preserve detail in both bright highlights and dark scenes. The projector also supports HDR10+ and JVC’s Deep Black Tone Control for enhanced cinematic performance.
A high-quality motorised lens system with 1.6× optical zoom and optical lens shift provides flexible positioning, while lens memory enables convenient switching between different screen aspect ratios.
The DLA-NZ700 is designed for customers seeking an authentic cinema experience, whether enjoying films, sporting events or premium 4K entertainment.
At Riverside HiFi, we offer complete home cinema design and installation, including projector positioning, motorised projection screens, projector lifts, Dolby Atmos surround sound, acoustic treatment and Control4 smart-home integration.
Technical specifications
| Specification | Details |
|---|---|
| UK model | DLA-NZ700BE |
| Colour | Black |
| Display technology | 3 × 0.69-inch native 4K D-ILA |
| Native resolution | 4096 × 2160 |
| Light source | BLU-Escent laser |
| Brightness | 2,300 lumens |
| Native contrast | 80,000:1 |
| Dynamic contrast | Infinity:1 |
| Laser life | Approximately 20,000 hours |
| HDR | HDR10, HDR10+, HLG |
| Dynamic tone mapping | Frame Adapt HDR Gen2 |
| Lens | 80mm, fully motorised |
| Optical zoom | 1.6× |
| Throw ratio | 1.34–2.14:1 (16:9) |
| Vertical lens shift | ±70% |
| Horizontal lens shift | ±28% |
| Screen size | 60–200 inches |
| Lens memory | 5 installation presets |

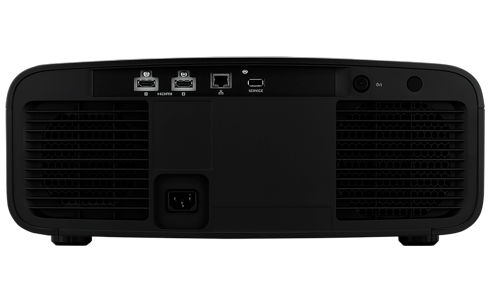

| HDMI | 2 × HDMI, 32Gbps, HDCP 2.3 |
| Maximum input | 4K at 60Hz |
| Network control | RJ45 Ethernet |
| USB | USB-A for firmware/settings |
| Control4 | SDDP supported |
| Fan noise | 23dB |
| Power consumption | 280W |
| Dimensions (W × H × D) | 450 × 180 × 479 mm |
| Net weight | 15.2kg |
| Packaged dimensions | 585 × 361 × 600 mm |
| Packaged weight | 18.9kg |
