Description
Eversolo AMP-F10 – High-Power Class AB Stereo Power Amplifier
The Eversolo AMP-F10 is a premium high-current stereo power amplifier engineered to deliver outstanding musical clarity, exceptional dynamic performance and authoritative loudspeaker control.
Featuring fully balanced circuitry, Class AB amplification with Class A bias, a substantial linear power supply and precision-engineered components, the AMP-F10 is designed for demanding high-end hi-fi systems.
Delivering 200 watts per channel into 8 ohms, 320 watts per channel into 4 ohms and up to 950 watts in bridged-mono mode, it offers impressive flexibility for driving high-performance loudspeakers.
Powerful Class AB Amplification
The AMP-F10 combines the refinement of Class A biasing with the power and efficiency of Class AB operation.
Its high-current amplifier architecture provides excellent dynamic headroom, allowing demanding musical passages to be reproduced with authority, precision and control.
Continuous Stereo Power Output
- 200W per channel into 8Ω
- 320W per channel into 4Ω
- 450W per channel into 2Ω
Bridged-Mono Power Output
- 650W into 8Ω
- 950W into 4Ω
Bridged-mono operation allows the amplifier to be configured as a powerful single-channel amplifier for compatible loudspeakers.
Fully Balanced Circuit Architecture
The AMP-F10 features a carefully engineered differential amplifier design with symmetrical signal circuitry.
Balanced XLR inputs help minimise interference when connected to compatible preamplifiers and high-end audio components.
Unbalanced RCA inputs provide additional flexibility for traditional hi-fi systems.
High-Capacity Linear Power Supply
A substantial power supply architecture supports the amplifier’s high-current output capabilities.
Independent power supply arrangements for the amplifier channels help minimise interference and maintain stable performance during demanding musical passages.
Exceptional Loudspeaker Control
With a damping factor exceeding 600, the AMP-F10 provides excellent control over compatible loudspeaker drivers.
This is particularly beneficial when reproducing complex bass passages and dynamic musical recordings.
Selectable Amplifier Gain
The AMP-F10 provides selectable 23dB and 29dB gain settings.
These allow the amplifier to be matched more effectively with different preamplifiers and source components.
Stereo & Bridged-Mono Flexibility
The AMP-F10 can operate as a conventional two-channel stereo power amplifier or in bridged-mono configuration.
This makes it suitable for premium stereo installations, including systems using separate power amplifiers for individual loudspeaker channels.
Premium Construction
The AMP-F10 features a robust aluminium chassis with substantial internal heatsinking and precision-engineered components.
Its distinctive front-panel power meters provide a visual indication of amplifier output while complementing the elegant industrial design.
Ideal Partner for Premium Music Streamers
The AMP-F10 is particularly well suited to high-performance digital music sources and preamplifiers, including compatible Eversolo streaming components.
Its balanced XLR inputs make it an excellent partner for premium network streamers incorporating analogue preamplifier functionality.
Key Features
- High-performance Class AB stereo power amplifier
- Class A bias operation
- 200W per channel into 8Ω
- 320W per channel into 4Ω
- 450W per channel into 2Ω
- 650W bridged-mono output into 8Ω
- 950W bridged-mono output into 4Ω
- Fully balanced differential amplifier architecture
- High-current linear power supply
- Balanced XLR and unbalanced RCA inputs
- Selectable 23dB and 29dB gain
- Damping factor greater than 600
- Stereo and bridged-mono operation
- Front-panel power meters
- Premium aluminium construction
- Designed for demanding high-end loudspeakers
Complete Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eversolo |
| Model | AMP-F10 |
| Product type | Stereo / bridged-mono power amplifier |
| Amplifier class | Class AB with Class A bias |
| Continuous output, 8Ω stereo | 2 × 200W RMS |
| Continuous output, 4Ω stereo | 2 × 320W RMS |
| Continuous output, 2Ω stereo | 2 × 450W RMS |
| Bridged-mono output, 8Ω | 650W RMS |
| Bridged-mono output, 4Ω | 950W RMS |
| Total harmonic distortion + noise | 0.008% at 1kHz |
| Signal-to-noise ratio | ≥113dB, A-weighted |
| Frequency response | 10Hz–30kHz, ±0.5dB at 1W/8Ω |
| Channel crosstalk | ≤−95dB at 200W/8Ω/1kHz |
| Damping factor | Greater than 600 at 8Ω/1kHz |
| Balanced analogue inputs | Stereo XLR |
| Unbalanced analogue inputs | Stereo RCA |
| XLR input impedance | 10kΩ |
| RCA input impedance | 10kΩ |
| Selectable gain | 23dB / 29dB |
| XLR sensitivity at 23dB gain | 5.2V |
| XLR sensitivity at 29dB gain | 2.4V |
| RCA sensitivity at 23dB gain | 2.65V |
| RCA sensitivity at 29dB gain | 1.3V |
| Operating modes | Stereo and bridged mono |
| Loudspeaker connections | High-current speaker terminals |
| Front-panel display | Analogue-style output power meters |
| Mains power requirement | 220–240V AC, 50Hz for UK operation |
| Maximum power consumption | 1,200W |
| Finish | Black |
Dimensions & Weight
| Measurement | Specification |
|---|---|
| Width | 430 mm |
| Height | 147 mm |
| Depth | 310 mm |
| Dimensions (W × H × D) | 430 × 147 × 310 mm |
| Net weight | 18 kg |
| Gross packaged weight | 21.5 kg |
Height includes the amplifier’s feet.
Included Accessories
- Mains power cable
- Trigger cable
- User manual
Installation Considerations
The AMP-F10 is a substantial high-power amplifier weighing 18kg.
Installation should provide adequate ventilation, suitable shelf support and sufficient clearance for connecting loudspeaker cables and audio interconnects.
The amplifier requires a compatible preamplifier or source with volume control. It does not incorporate network streaming, a DAC or conventional integrated-amplifier source selection.
Before connecting the amplifier to the mains supply, ensure that its voltage selector is correctly configured for UK 230V operation, as instructed by Eversolo.
Recommended Applications
The Eversolo AMP-F10 is particularly suitable for:
- Premium two-channel stereo systems
- High-performance floorstanding loudspeakers
- Demanding low-impedance loudspeaker systems
- High-end streamer and preamplifier combinations
- Bridged-mono amplification
- Dedicated listening rooms
- Reference-quality residential hi-fi installations
Expert Eversolo Advice at Riverside HiFi
At Riverside HiFi, we specialise in premium hi-fi, high-performance amplification, home cinema and professional audio installation.
Our services include:
- Power amplifier and preamplifier matching
- High-end loudspeaker selection
- Stereo system design
- Network streamer and DAC integration
- Loudspeaker positioning and optimisation
- Dedicated listening room installations
- Professional system configuration
Whether you’re upgrading your existing hi-fi system or building a high-performance stereo installation, Riverside HiFi can help you select the ideal components.
Riverside HiFi – Hi-Fi | Home Cinema | Smart Home | Professional Installation
Bring Every Note to Life
Robust Output
Authentic Experience
The Eversolo AMP-F10 delivers up to 950W in bridged mode and 320W per channel at 4 ohms, ensuring powerful performance across all volume levels. Whether you’re enjoying stereo sound at home or experiencing the electrifying atmosphere of live music in a large space, the AMP-F10 delivers impressive power that draws you into an unparalleled soundstage. *At 8 ohms, it can provide 200W of power per channel, and up to 650W in bridged mode. *At 4 ohms, it can provide 320W of power per channel, and up to 950W in bridged mode.
Faithful Reproduction
Pure Sound Quality
With an ultra-low total harmonic distortion of 0.008%, the AMP-F10 faithfully reproduces music in its purest form. From clear highs to robust lows, every note is handled with precision, presenting an authentic and lifelike sound experience. You’ll feel the fine textures of instruments and the natural expression of vocals, as if you were right there in the performance.
Dynamic and Detailed Representation
The AMP-F10 boasts an excellent signal-to-noise ratio of 113dB, ensuring that musical details are preserved from the quietest passages to the most dynamic peaks. From the elegance of classical to the intensity of rock, you’ll capture every nuance with impressive clarity and depth, making every genre come alive.

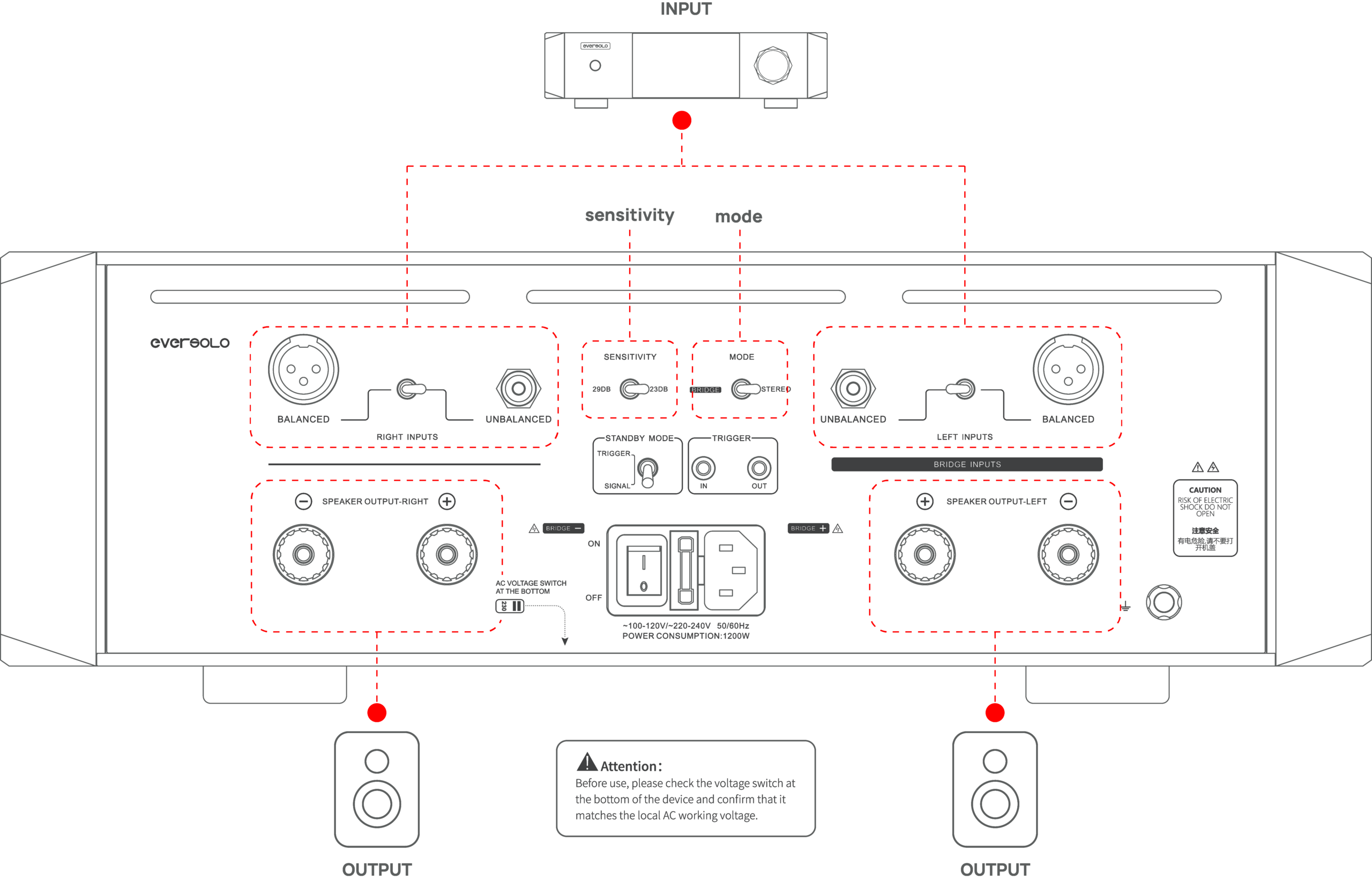

Versatile and Flexible Connections
Whether your source device uses RCA or XLR, the AMP-F10 handles it effortlessly. Its diverse input options allow for seamless integration to various audio setups, perfectly adapting from Hi-Fi stereo systems to studio gear, delivering a convenient and smooth experience.
Advanced DC Filtering Circuit
The AMP-F10 employs an innovative DC filtering circuit between the main AC supply and audio circuit, effectively removing low-frequency DC interference. This design ensures that only clean AC power is delivered to the audio circuits, effectively enhancing the performance of the audio circuit while reducing the hum from the toroidal transformer.
Clear Sound Free of Interference
By eliminating DC interference from the AC supply, the AMP-F10’s overall performance is dramatically enhanced, delivering a pure audio experience.
High-Fidelity Audio Processing
The AMP-F10 is equipped with advanced dual differential amplifiers, which are tailored for low-level audio signals. Its symmetrical circuit design and negative feedback technology minimize distortion, ensuring high-fidelity and high linear audio output. This design not only expands dynamic range but also effectively suppresses common-mode noise(such as power and environmental interference), keeping the output sound broad and natural at any volume levels.
Powerful and Refined Bass
With a damping factor exceeding 600, the AMP-F10 ensures powerful, clear low-frequency performance. Whether delivering the intense impact of deep bass or capturing subtle low frequency details, it handles all effortlessly. From the punch of electronic music to the gentle whispers of jazz, it caters to a wide range of listening scenarios, empowering every note with emotion and passion.
Superior Sound Enduring Reliability
Designed with durability and stability in mind, the AMP-F10 features premium components and fine craftsmanship for long-term performance. Whether delivering intense volume or supporting extended playback, the AMP-F10 operates reliably, letting you enjoy the pleasures of music worry-free.
1000W Dual-Channel Independent Linear Power Supply
The AMP-F10 is equipped with a 1000W dual-channel independent linear power supply, providing robust, stable power to every note. This design not only prevents interference between the two channels but also provides each channel with dedicated, powerful current. It ensures that the left and right channels deliver independent and balanced performance, resulting in a fuller and more precise stereo soundstage. With a powerful 1000W reserve for high dynamic audio, the low frequencies are impactful and strong, while the mid and high frequencies remain smooth and rich, every emotion and strength in music is released for a truly immersive listening experience.
5 Pairs of High-Current MOSFETs per Channel
To improve the consistency of the amplifier circuit, the Eversolo AMP-F10 uses five pairs of precision-matched MOSFET high-current amplification transistors for each channel. The parallel configuration ensures even current distribution, minimizing the potential distortion and inconsistent current distribution issue.
The Eversolo AMP-F10 is not just an amplifier but the dream choice for your audio systems. Whether you’re an audiophile or a home theater lover, the AMP-F10 delivers an unrivaled auditory experience.
Dimesions: (W) 430mm x (L) 310mm x (H) 147mm
