Description

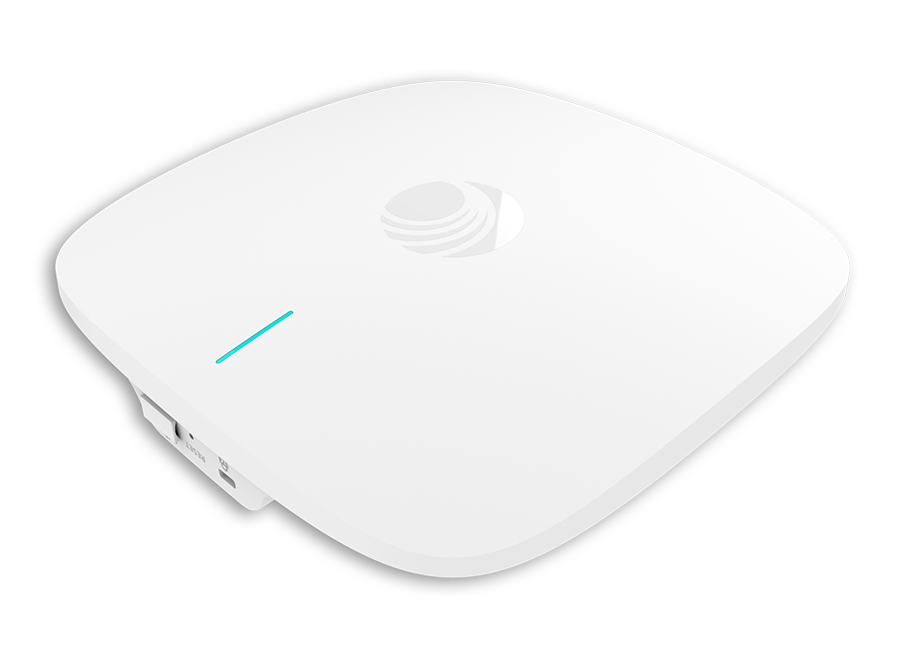

The Cambium Networks X7-35X Wi-Fi 7 Indoor Access Point (AP) is designed to deliver cutting-edge performance and flexibility at a price point suitable for any market. Power your network with the latest Wi-Fi technology.
Radios
2.4 GHz 2×2:2 with 802.11 b/g/n/ax/be
5 GHz 2×2:2 with 802.11 a/n/ac/ax/be
6 GHz 2×2:2 with 802.11 ax/be
5 GHz 2×2:2 with 802.11 a/n/ac/ax/be
6 GHz 2×2:2 with 802.11 ax/be
BLE and Zigbee
Built-in BLE or 802.15.4 radio
Max Transmit power 20 dBm with the integrated 5 dBi omnidirectional antenna gain
Matter and thread support
Max Transmit power 20 dBm with the integrated 5 dBi omnidirectional antenna gain
Matter and thread support
Supported data rates
802.11be: 7.3 to 5765 Mbps
802.11ax: 7.3 to 2402 Mbps
802.11ac: 6.5 to 1733 Mbps
802.11n: 6.5 to 300 Mbps
802.11a/g and a: 6 to 54 Mbps
802.11b: 1 to 11 Mbps
802.11ax: 7.3 to 2402 Mbps
802.11ac: 6.5 to 1733 Mbps
802.11n: 6.5 to 300 Mbps
802.11a/g and a: 6 to 54 Mbps
802.11b: 1 to 11 Mbps
Security & Authentication
Open, WPA, WPA2-PSK AES WPA2-ePSK / WPA2-Enterprise
WPA3-PSK (WPA3-SAE) / ePSK / Enterprise / Enterprise-CNSA / OWE (Enhanced Open)
OSEN and PMF (802.11 W)
MAC authentication with local database or external database using RADIUS protocol
EAP-TLS / TTLS / PEAP / SIM / AKA
Hotspot WEB authentication, Hotspot 3.0
WPA3-PSK (WPA3-SAE) / ePSK / Enterprise / Enterprise-CNSA / OWE (Enhanced Open)
OSEN and PMF (802.11 W)
MAC authentication with local database or external database using RADIUS protocol
EAP-TLS / TTLS / PEAP / SIM / AKA
Hotspot WEB authentication, Hotspot 3.0
SSID
16 SSIDs per radio, 48 SSIDs per AP
SSID scheduling
SSID scheduling
Client Capacity
256 clients per radio, 768 clients per AP
Max client connections limit per SSID / radio / device
Max client connections limit per SSID / radio / device
