Key Features
- 7.2 Channel powerful surround sound with Zone2
- Wi-Fi, Bluetooth, AirPlay 2, Spotify Connect and MusicCast multi-room audio
- Dolby Atmos with height virtualization via FW Update
- HDMI 7 in/1 out, 8K/60Hz, 4K/120Hz
- Dedicated gaming function(ALLM,VRR,QMS,QFT)
Yamaha RX-V6A 7.2 Channel AV Receiver, Black Overview
Enter the world of home theater with the Yamaha RX-V6A. This AV Receiver will completely transform how you listen and watch at home. Plus with plenty of features means lots of choices on how to enjoy your entertainment.
YPAO System Calibration
SCENE
Compressed Music Enhancer
Silent Cinema
MusicCast
Music Streaming
MusicCast Surround
Enter the world of home theater with the Yamaha RX-V6A. This AV Receiver will completely transform how you listen and watch at home. Plus with plenty of features means lots of choices on how to enjoy your entertainment.
- 7.2 Channel powerful surround sound with Zone2
- Wi-Fi, Bluetooth, AirPlay 2, Spotify Connect and MusicCast multi-room audio
- Dolby Atmos with height virtualization via FW Update
- HDMI 7 in/1 out, 8K/60Hz, 4K/120Hz
- Dedicated gaming function(ALLM,VRR,QMS,QFT)
- Voice control with Alexa and Google Assistant devices
- MusicCast Surround capable
- YPAO Reflected Sound Control (R.S.C.) sound optimisation
- Unparalleled sound
- Movies and games like never before
- Simple to set up simple to use
- Made for your room

Dolby Atmos
For those without in-ceiling or upward firing speakers in their system, Dolby Atmos with Height Virtualization Technology simulates the Atmos experience with forward facing-drivers. Configure up to five speakers to replicate the effect of two in-ceiling speakers, or utilize all seven channels to simulate the powerful effect of four overhead speakers. Feel every dimension in Dolby Atmos. Enjoy a 5.1 surround speaker system and two additional overhead speakers or two Dolby Atmos elevation speakers, delivering dramatic overhead effects for truly enveloping audio – including Dolby Surround upmixer for legacy content.

DTS:X
DTS:X immersive audio formatting places sound where it would naturally occur in space, creating life-like, multi-dimensional audio. The included spatial remapping engine of DTS Neural:X offers improved immersion and heightened realism in all your favorite movies.

HDR10+
HDR10+ signals not only dynamic range (the ratio of light to dark) of video content on a scene-by-scene (or even frame-by-frame) basis, it also provides, in a small amount of metadata, the scene characteristics between bright and dark so that important detail can remain. This enables displays to reproduce images more realistically, adhering to the creator’s intent.

Music Enhancer
When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha’s Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.

High Slew Rate
It would contribute a precise signal transmission, especially suitable for high resolution audio signal. Generally high slew rate amplifier causes unstable signal transmission, Yamaha’s newly design circuit achieves high slew rate with stable signal transmission.

Gaming
Enhanced gaming and media features ensure an added level of smooth and seamless motion and transitions for gaming, movies and video. They include: Auto Low Latency Mode (ALLM) allows enables the ideal latency setting to automatically be set allowing for smooth, lag-free and uninterrupted viewing and interactivity. Variable Refresh Rate (VRR) reduces or eliminates lag, stutter and frame tearing for more fluid and detailed gameplay. Quick Media Switching (QMS) for movies and video eliminates the delay that can result in blank frames before content is displayed. Quick Frame Transport (QFT) reduces latency for smoother no-lag gaming, and real-time interactive virtual reality.

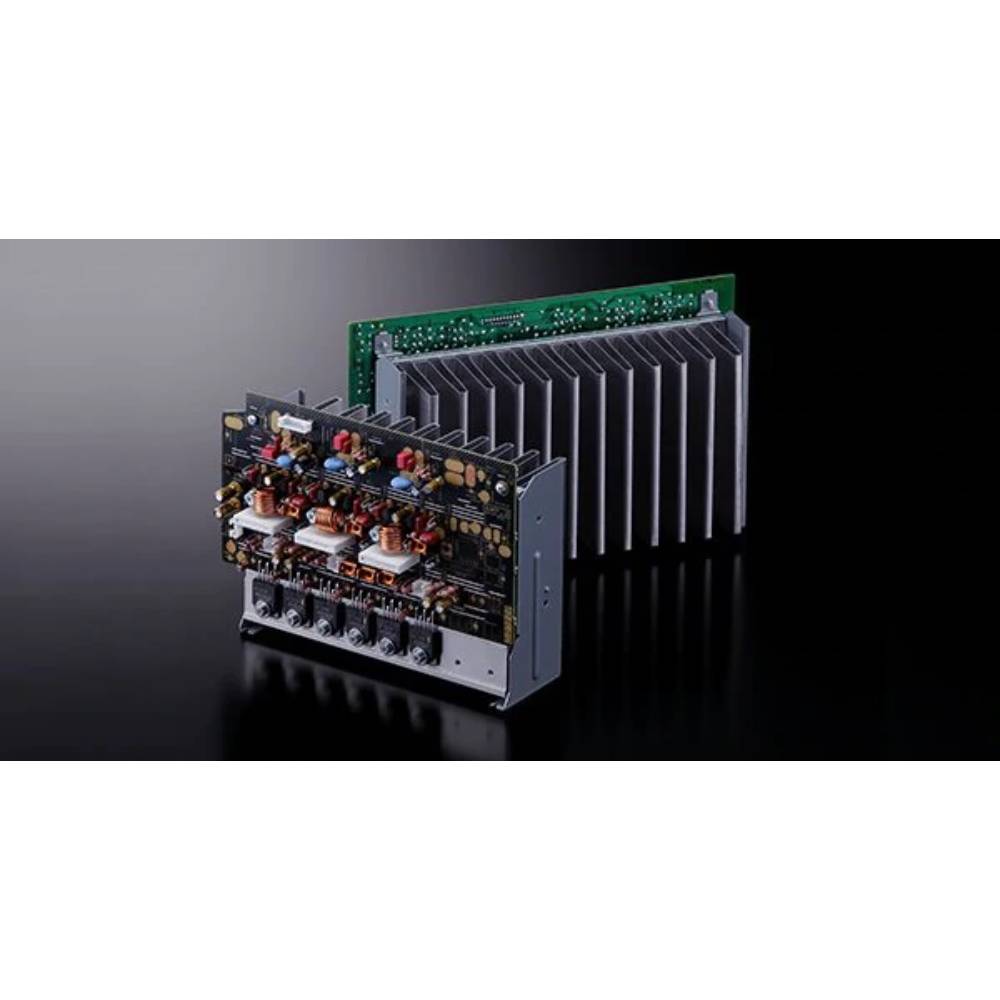

CINEMA DSP 3D
This unique Yamaha proprietary sound field creation technology, was created by combining measured sound field data with digital signal processing. Yamaha collected sound field data from famous concert halls and music clubs around the world, utilising its wealth of experience in the fields of concert hall design, public address and mixing. By digitising this vast trove of information and incorporating it into dedicated LSI devices, it effectively reproduces the spaces of concert halls and music clubs in your home. Immerse yourself in the astounding realism of your movies, and enter a world of profound theatre sound.

8K/60Hz, 4K/120Hz
Supports end-to-end 8K/4K resolutions and higher refresh rate solutions with a single upgraded cable for seamless integration within the HDMI eco-system. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. 4K/120Hz enables ultra-fast motion UHD images to be crisp and razor sharp; allowing sports, action movies, high-performance gaming and VR to benefit significantly.

Easy Operation

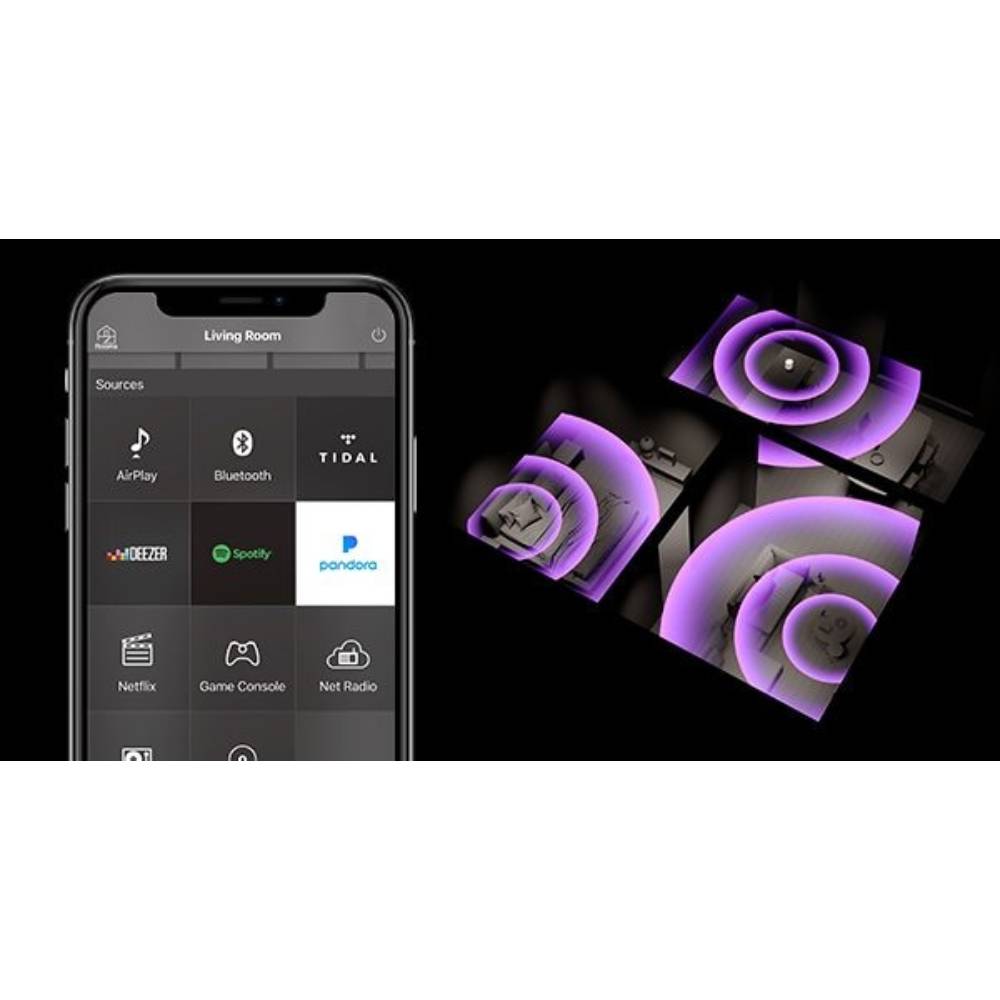

Use your smartphone or tablet together with the MusicCast CONTROLLER app to operate the AVR and change settings quickly and easily. The same Controller app functions as a remote control for all your MusicCast-compatible devices as well as full multi-room audio controls.

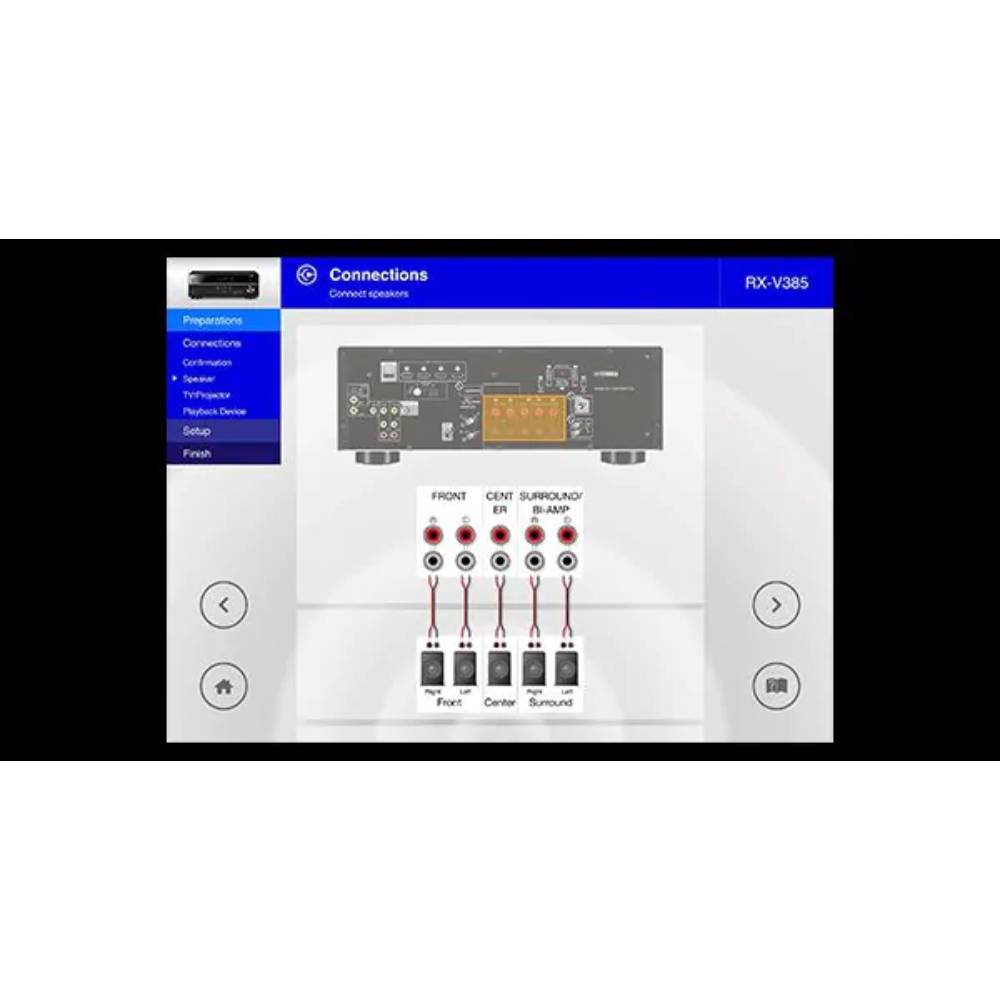

AV Setup Guide
No worries, no confusion. Use this special app to receive expert set up assistance for your AV receiver and source devices. It even guides you through various other settings such as speaker connections, TV and source device connections and power amplifier assignments.

Voice Control
Touch or voice control – the choice is yours. Intuitively control a single MusicCast product or an entire whole-of-home system with ease using Alexa or Google Assistant and hear your home come alive.

SCENE Buttons
There are four SCENE buttons. You can preset them for different inputs, as well as a sound field program, Music Enhancer, HDMI output and more. The inputs can be set to specific sources, such as an FM or Internet radio station, a station on a streaming service, a USB device or a song on a PC or NAS (network). Once you have set the buttons, simply press one on the main unit or the remote control to power on the receiver and hear your desired music. The buttons can be re-set at any time.

Wireless Rear Speaker
Combine this AV receiver with the MusicCast 50 or MusicCast 20 wireless streaming speaker and enjoy the amazing convenience of creating a home theatre with wireless surround sound. What’s more, you get stunningly realistic sound with a clean, clutter-free setup. Easily turn your current living room into a special entertainment environment where you can fully enjoy movies and music.
.jpg)
YPAO
YPAO (Yamaha Parametric room Acoustic Optimiser) analyses the room acoustics and your system, then precisely adjusts various audio parameters to provide the best sound for your room. Simply by placing the supplied microphone at your listening position and switching YPAO on, the system is automatically calibrated for optimum performance in your home theatre room.
.jpg)
Streaming Service
Explore a world of music with music streaming services built-in. Synchronising your playlists and tracks from your smart phone or computer to the AV receiver, music streaming services make it impossibly easy to either listen to your favourites or discover new music. AirPlay 2 adds the ability to stream Apple Music and other streaming services to multiple MusicCast devices throughout your home. Easily control it from your iPhone or iPad, link it with a HomePod, or simply utilise voice control and ask Siri to assist.

eARC
Unlock the full potential of your 4K content. Enhanced Audio Return Channel (also known as eARC) is the next generation of ARC – available in the industry-leading AV receivers from Yamaha. eARC delivers full-resolution, multi-channel audio formats such as Dolby TrueHD and DTS-HD through your existing HDMI connection, giving you the most realistic surround sound experience for immersing yourself in your favorite movies and moments.

Multi-room Audio
Imagine sharing all the music you love throughout the home – no matter the format. From your favourite vinyl to AirPlay, Bluetooth to music streaming services and even sound from your TV, MusicCast has it covered. Additionally, all MusicCast products are designed with sound quality at the front of mind. High-res formats including Apple Lossless (ALAC) up to 96 kHz, WAV, FLAC and AIFF up to 192 kHz are supported.
Channel | 7.2 |
---|---|
Rated Output Power (1kHz, 1ch driven) | 115 W (6 ohms, 0.9% THD) |
Rated Output Power (20Hz-20kHz, 2ch driven) | 80 W (6 ohms, 0.06% THD) |
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) | 145 W (6 ohms, 10% THD) |
High Slew Rate Amplifier | Yes |
CINEMA DSP | Yes |
DSP Programs | 17 |
Dialog Level Adjustment | Yes |
Virtual Presence Speaker | Yes |
Virtual Surround Back Speaker | Yes |
Dialogue Lift | Yes |
SILENT CINEMA / Virtual CINEMA | Yes |
Dolby Atmos | Yes |
Dolby Atmos Height Virturalizer | Yes (via firmware update) |
Dolby TrueHD | Yes |
Dolby Digital Plus | Yes |
Dolby Surround | Yes |
DTS:X | Yes |
DTS-HD Master Audio | Yes |
File Format | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 192 kHz / 24-bit, WAV / AIFF: up to 192 kHz / 32-bit, DSD: up to 11.2 MHz |
Pure Direct | Yes |
Compressed Music Enhancer | Yes |
YPAO multi-point measurement | Yes |
YPAO Volume | Yes |
Adaptive DRC (Dynamic Range Control) | Yes |
Initial Volume & Maximum Volume Setting | Yes |
Bi-amp capability | Yes |
Audio Delay | Yes (0-500 ms) |
DA Converter | 384 kHz / 32-bit BB PCM5101A |
HDMI eARC | Yes |
HDMI Audio Return Channel | Yes |
HDMI Pass-through | 8K / 60 Hz, 4K / 120 Hz HDR10+ (via future update) |
HDMI Up-scaling | Yes up to 4K |
HDR 10+ | Yes (via firmware update) |
VRR/ALLM/QMS/QFT | Yes (via firmware update) |
MusicCast Surround | Yes |
HDMI Input/Output | 7/1 |
HDMI CEC | Yes |
USB Input | Yes |
Network Port | Yes |
Wi-Fi | Yes (2.4 / 5 GHz) |
AirPlay | Yes |
Bluetooth | Yes (SBC / AAC) |
Front AV Input | USB |
Digital Audio Input/Output: Optical | 1/0 |
Digital Audio Input/Output: Coaxial | 1/0 |
Analogue Audio Input/Output | 4/0 |
Phono Input | Yes |
Preout | 2.2-ch |
Headphone Output | 1 |
FM/AM Tuner | Yes (Availability varies by region.) |
DAB Tuner | Yes (Availability varies by region.) |
On-Screen Display | Graphical User Interface |
SCENE | Yes (8 sets) |
App Control | Yes (iPhone / iPad / Android phone / tablet) |
Web Browser Control | Yes |
Remote Control Unit | Yes |
Zone 2 Audio Output | Preout |
Powered Zone | Zone 2 |
+12V Trigger Output | 1 |
Party Mode | Yes |
Standby Power Consumption (IR only) | 0.1 W |
Auto Power Standby | Yes |
ECO Mode | Yes |
Dimensions (W x H x D) | 435 W x 171H x 377D mm (with antenna up:435 W x 245 H x 377 D mm);17-1/8″W x 6-3/4″H x 14-7/8″D (with antenna up:17-1/8″W x 9-5/8″H x 14-7/8″D) |
Weight | 9.8 kg; 21.6 lbs. |
Special order item.
