Our most advanced and sophisticated processor to date.

Name: Anthem AVM90 8K AV Processor
SKU: 5261
Price: 7650.00 GBP
Availability: InStock

Demand Excellence, Demand Anthem.

Key info

Feel the power of every frame with the AVM 90 and its advanced 8K HDMI 2.1 Platform with HDCP 2.3. Showcasing 7 dedicated 8K inputs that support 8K/60Hz or 4K/120Hz pass-through and 3 dedicated outputs with Enhanced Audio Return Channel, you can enjoy 8K quality video from all of your 8K source devices in amazing clarity. Also featuring the latest HDMI technology and specification, the AVM 90 allows you to take your home entertainment to the next level with HDR10+, ALLM and VRR. The possibilities are limitless; unlock the true potential of your media with the industry’s most flexible and feature-rich HDMI platform.

19 channels with 4 dedicated Sub outputs
Dolby Atmos, DTS:X, IMAX and Dolby Vision supported
Apple AirPlay, Google Chromecast, Spotify Connect and Roon (coming soon) supported
Modern design with high resolution front panel display
Supports Anthem’s web user interface

The AVM 90 is our new flagship A/V Processor with upgraded audio circuitry, 4 independent subwoofer outputs and a 32-bit AKM AK4499EQ DAC with 768kHz sampling capability. It represents Anthem’s ultimate expression of audio performance.

Object-oriented audio codecs have been updated with support for up to 15.4 channels; as well as built-in streaming support for Apple AirPlay2, Google Chromecast, Bluetooth, Spotify Connect (coming soon), and Roon (coming soon). Video support includes 7 HDMI 2.0 inputs with 2 outputs, plus eARC for seamless integration with smart TVs. Perfect passthrough of Ultra HD signals at up to 18.2 Gbps with Dolby Vision, HDR or Hybrid Log Gamma ensures the optimal presentation of your visual media.

Dolby Vision

Feel the story’s full emotional impact, bringing your entertainment to life with an ultravivid picture, brighter highlights, and darker shadows.

Dolby Atmos

Sound has never sounded this good. Feel a deeper connection to the stories and music you love with the sound that moves all around you with breathtaking realism.

DTS:X Pro

DTS:X is the next-generation audio codec from DTS that leverages object-based audio to enable new audio experiences in immersion and interactivity.

Greater spatial resolution and realism in premium home cinema technology is now possible with DTS:X® Pro technology, which supports up to 32 connected speakers, even from overhead. Experience how truly immersive audio transforms your favorite movies, music and games.

IMAX ENHANCED is the only way to experience IMAX’s signature picture, sound and scale in the home, IMAX Enhanced combines digitally remastered 4K HDR content and DTS audio technologies with best-in-class consumer electronics products and streaming platforms.

Airplay

All AVM/MRX components support Apple AirPlay and AirPlay 2 which let the user stream content, plus songs stored on local networks, to any AirPlay-enabled device. AirPlay 2 adds support for multidevice play so you can hear your music throughout the home.

Google

Google Chromecast, lets the user stream content from any Android device like a phone, tablet, or laptop to any AVM/MRX components. If you can listen to it on your phone, it can be Cast to your Anthem receiver or processor

Spotify

All AVM/MRX components support Spotify Connect allowing you to turn your smartphone into a remote and allows you to play, pause, and stream content from Spotify.

Bluetooth

All AVM/MRX components support Bluetooth to stream songs stored on devices like phones, tablets, and laptops.

Roon

All AVM/MRX components support Roon allowing you to connect, stream, and manage your music collection. Roon tells your music what to do and where to do it.

All specifications

Physical characteristics

Weight	10.1 kg
Dimensions (HxWxD)	152.2 X 431.8 X 364 mm

Technical specifications

Power output	10.7 VRMS, Subwoofer 11 VRMS
THD	-100 dB
Frequency response	20 Hz — 35 kHz (+/-0.2dB
S/N Ratio	(4 Vrms output, IEC-A filter) 110 dB
Digital outputs	3 x HDMI \| 1 x Optical
Audio post procession options	DTS:X, Dolby Atmos, Dolby ProLogic Surround,

Inputs/Outputs

Digital inputs	HDMI 2, Coaxial Digital Inputs 2, Optical Digital Inputs 3, USB Yes – 1
Analog outputs	RCA 4, Phono MM 1, Sub Output 4 (XLR and RCA Phono)
Digital outputs	3 x HDMI \| 1 x Optical

Connectivity

Wi-Fi	Yes
Bluetooth	Yes

Streaming

Streaming features

Apple AirPlay

Included accessories

What’s in the box

Remote Control

Introducing AVM 90. Our most sophisticated audio-video processor. Everyaspect of its design was scrutinized, every component carefully consideredand reconsidered. It’s the culmination of everything we know and unlikeanything you’ve ever heard. Meet our embodiment of excellence, meet AVM 90.

Setting the standard for over 20 years, we knew that it would take something extraordinary to push the boundaries of performance even further. So every aspect of the AVM 90’s design was scrutinized, every component carefully considered and reconsidered. With AVM 90, it’s not about a single component or single feature; it is about the totality of our design—everything working together in perfect harmony to deliver a performance that genuinely transcends the listening experience.

We start with an oversized high-efficiency toroidal power supply, isolating the high power signals from the sensitive audio pathway. The critical conversion from digital to analog utilizes the highest performance ESS Sabre DACs for all 19 channels of processing. Compared to traditional voltage source circuits, these current source designs are a dramatic step forward in performance and complexity compared to conventional voltage source circuits.

But reference DACs aren’t enough; we know the entire signal path needed to be upgraded to match. Ultra-low noise, ultra-low distortion high output op-amps were carefully selected, and superior 0.1% high precision resistors were used to reduce distortion further and ensure gain consistency between channels. The best linear regulators were selected to provide low noise reference supplies to the premium audio converters and back-end circuits. As the complexity and density increased, it became necessary to implement premium high-layer count circuit boards with additional isolating ground planes. This allowed our engineers the freedom to ensure every channel has a unique, low cross-talk and pristine signal path.

We didn’t stop there. To ensure a bit-perfect experience, we’ve included the most advanced implementation of our award-winning ARC: Genesis Room Correction technology and an all-new DSP platform featuring a 32-bit floating-point audio data path with a 64-bit floating-point computation and double-precision filter states. With ARC: Genesis, professional calibration of your system can be achieved with the click of a button while still offering advanced functionality to further refine the sound to your personal taste.

After experiencing the AVM 90 for the first time, we knew that we had exceeded every expectation. Rendering audio with such vividness, such stunning clarity, you’ll want to reach out and touch it.

Elevate. Refine. Enhance.

The numbers speak for themselves.

768kHz Digital Analog Converter (DAC): 32 bit

1.6 Ghz Dual-Core DSP With Floating 64-Bit Dual Precision States

Dedicated HDMI 8K Ports with eARC: 7 in/ 3 out

Channel Count: 19

Dedicated Sub Outputs: 4

Advanced 8K HDMI Platform with e-ARC Support

Experience Gaming Like Never Before on AVM 90

It’s never been a more exciting time to be a gamer. With the latest consoles offering up to 4K/120Hz graphics, realistic HDR and Dolby Vision dynamic range, and immersive Dolby Atmos sound, you have to make sure your Home Theater gear won’t hold you back. Enter the AVM 90, our most feature-rich AV processor to date!

Featuring the latest object-based audio and video formats

Dolby Atmos®, DTS:X®, DTS Virtual:X™, and IMAX® Enhanced processing are all supported to allow you to listen to all of your favourite audio formats up to 19-channels (15.4).

Dolby Atmos

Sound has never sounded this good. Feel a deeper connection to the stories and music you love with sound that moves all around you with breathtaking realism.

DTS:X

DTS:X is the next-generation audio codec from DTS that leverages object-based audio to enable new audio experiences in immersion and interactivity.

IMAX

IMAX ENHANCED is the only way to experience IMAX’s signature picture, sound and scale in the home, IMAX Enhanced combines digitally remastered 4K HDR content and DTS audio technologies with best-in-class consumer electronics products and streaming platforms.

Dolby Vision

Feel the story’s full emotional impact, bringing your entertainment to life with an ultra-vivid picture, brighter highlights, and darker shadows.

The power to engineer your room

At Anthem, we like to take things one step further. Rather than just designing a processor, we want to engineer your room. With the most advanced implementation of our award-winning ARC: Genesis room correction, professional calibration of your system can be achieved with the click of a button while still offering advanced functionality to refine the sound to your personal taste.

Surfaces such as windows, furnishings, and the geometry of the walls, floor, and ceiling add unwanted resonance and coloration.

Anthem Room Correction measures each speaker’s output relative to the listening area, then through a series of calculations, adjusts its output. Not only does ARC correct peaks and dips in a speaker’s frequency response, but it also preserves the beneficial acoustic attributes of a room.

SMART Engineering

At Anthem, we have a straightforward goal – to design, engineer and manufacture audio/video products that deliver exceptional performance and convenience at a reasonable price. We do this by spending thousands of hours selecting and testing components, carefully designing our own circuit topologies, and backing them with robust power supplies that ensure maximum long-term quality and reliability.

Balance, in Perfect Harmony

It’s not about a single component, single feature or piece of software; it is about the totality of our design—everything working together in perfect harmony to deliver a performance that genuinely transcends the listening experience.

Flexible Streaming options to meet your needs

The AVM 90 includes a robust set of streaming options that can pull your music in from local storage or from the Internet. Thanks to Anthem’s high-speed processing and premium digital-to-analog conversion using high-end DACs, sound quality can be every bit as good as dropping a CD into a dedicated disc player.

Apple AirPlay

AVM 90 supports Apple AirPlay and AirPlay 2, letting the user stream audio content, plus songs stored on local networks, to any AirPlay-enabled device. In addition, AirPlay 2 adds support for multi device play so you can hear your music throughout the home.

Google Chromecast

Google Chromecast, lets the user stream audio content from any Android device like a phone, tablet, or laptop to the AVM 90. If you can listen to it on your phone, it can be Cast to your processor.

Spotify Connect

AVM 90 supports Spotify Connect allowing you to turn your smartphone into a remote and allows you to play, pause, and stream content from Spotify.

Bluetooth

AVM 90 supports Bluetooth to stream songs stored on devices like phones, tablets, and laptops.

Roon (Coming Soon!)

AVM 90 supports Roon allowing you to connect, stream and manage your music collection. Roon tells your music what to do and where to do it.

Complexity Simplified

At Anthem, our goal is to shape how you interact with your technology, so we went the extra mile to ensure no detail is overlooked while providing the utmost flexibility when it comes to device setup. Using a phone, tablet or laptop, owners can easily access any function or setting and make changes on the fly. Power the primary or secondardy zone on and off, adjust volume, change audio modes, tweak channel trims and more, for a perfect surround sound experience. You’re in control, and it’s never been easier.

Limitless Possibilities

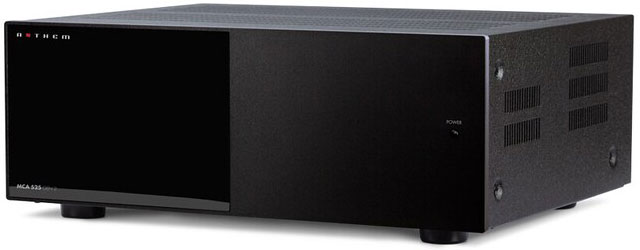

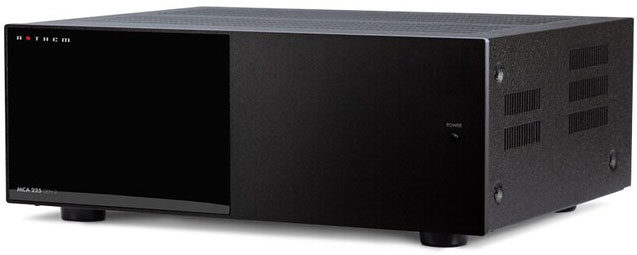

Today’s premium home theaters need support for as many as 15 speakers and four subwoofers to handle the latest Dolby Atmos and DTS:X object-oriented audio codecs. Pair the AVM 90 A/V Processor with a stack of MCA amplifiers and you’ll hear sound that rivals the best commercial cinemas.

MCA’s scalability means you can purchase only the channels you need to power your vision of home entertainment. The AVM 90 Processor can manage configurations up to 15.4 channels (up from 11.2) with ARC Genesis Room Correction ensuring the best possible sound at every seat.

Integrate with Ease

At Anthem, we pride ourselves on playing nice with others, no matter the ask. As a result, we’ve made the Anthem AVM 90 the ultimate nerve center for any premium home theatre or media room by treating ease of integration as a top priority. The Anthem AVM 90 features RS232 Serial and IP control capabilities for easy customization and compatibility with common third-party integration solutions.

Integrating all of today’s technologies into a single component.

Dolby Atmos, DTS:X, DTS Virtual:X, IMAX Enhanced, Dolby Vision, HDR 10, HDR 10+, HDMI 2.1, HDCP 2.3, eARC, HLG, VRR

Backed by over 35 years of home-grown, hands-on design, andinnovative audio engineering experience, Anthem products provide anunprecedented level of reliability and functionality, delivering one ofthe industry’s highest performance/price ratios. This is just onereason why Anthem electronics are the choice of knowledgeableaudiophiles, professional musicians and engineers the world over.
